The DI02 is a high end Class A direct box, made for the studio and the stage. It features the big & famous Carnhill© VT24499 transformer [the same you can find in Neve© 51-series console] that gives a massive sound on the balanced output, but also an integrated buffer on the link output for enhanced direct sound through your guitar, bass or keyboard amp.
Free delivery from 350€, depending on your country.
DI02
80s
INSPIRATION

We've taken our inspiration from the sound of vintage hifi equipment from the 80s, at the height of the use of audio transformers, which gave a good, big, loud sound.

The successor to our already acclaimed DI01 is based on the same analog circuitry, but features a new power module for improved sound, and a new sturdy enclosure for years of worry-free touring.

No items found.
3 MAIN FEATURES You WILL LOVE
1
A very high input impedance offering a wide and dynamic sound, perfect for modern & vintage instruments.
2
A "Buffer" feature on the Link output to ensure a perfect impedance match with the following amplifier, and always the best sound.
3
An input level indicator on a multicolor led - simple but indispensable time saver (on stage as well as in studio).
WONDERING WHAT'S INSIDE ?
A classic HiFi inspired circuit - ideal for feeding vintage gears with low input impedance.
The legendary Carnhill© VT24499 output transformer for total galvanic isolation while adding body and character.
A sturdy casing to brave the stage for decades to come.
Ok, sounds cool,
but what about the
specs?
  • Class A push-pull power stage, inspired by vintage HI-FI output stages: a must for exceptional roundness and transients
  • Very high input impedance - over 4 MΩ - not loading the source, and independent of the PAD position
  • Max input level: +9dBU without PAD | +18dBU with PAD
  • Max output level: +22dBU without PAD | +19dBU with PAD
  • Output transformer: Carnhill VT24499
  • Integrated buffer circuit on the LINK output

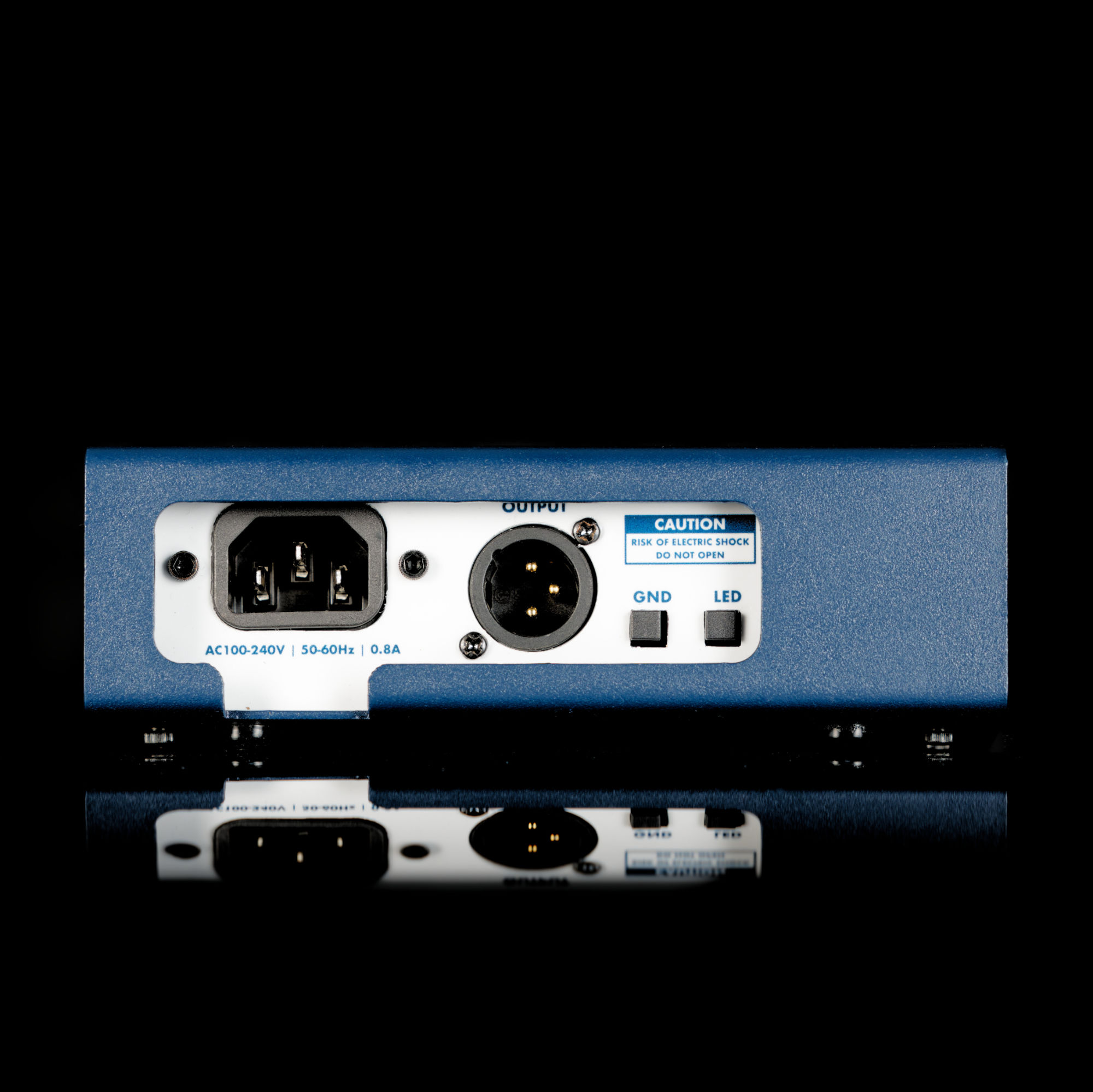

  • Earth lift on the output XLR to avoid ground loops
  • LED button to switch off the front panel backlighting
  • Frequency response (1kΩ load) : ±1.0dB from 5.4Hz to 25+kHz | ±0.2dB from 20Hz to 20kHz
  • SNR : >102dB (0.2% max THD)
  • Worldwide compatible power supply: 100-240V | 50-60Hz
  • Dimensions : 220x160x47mm | 8.7x6.2x1.8in
  • Weight : 1.85kg | 4.1lb

Designed and assembled in our workshop in Saint-Vérand (France). All parts are manufactured by our beloved partners in France & Europe.

DI02
ON TV !
No items found.
What people say about the
DI02
?
I WANT ONE (or MORE)
DI02
DI02
Ready to ship !
Unavailable immediately. Please contact us for the next production date.
620
ex-VAT
Free delivery from 350€, depending on your country.
B-STOCK AVAiLABLE FOR THIS PRODUCT!
DI02 #2404062
DI02 #2404062
620
490
ex-VAT

This DI02 was used on Jazz à Vienne 2024 for a few shows.

It has some minor scratches on the case, but is in perfect working order and is covered by our 3-year warranty.

Touring bag & V-Lock cable INCLUDED.

DI02 #2406032
DI02 #2406032
620
475
ex-VAT

Used for a few shows, this DI02 has some minor scratches on the case, but is in perfect working order and is covered by our 3-year warranty.

Touring bag & V-Lock cable NOT included.

DI02 #2406055
DI02 #2406055
620
475
ex-VAT

Used for a few shows, this DI02 has some minor scratches on the case, but is in perfect working order and is covered by our 3-year warranty.

Touring bag & V-Lock cable NOT included.

PICK ONE OF OUR BUNDLES AND SAVE MONEY
The DI02 stereo pair
The DI02 stereo pair
1.150
1.050
ex-VAT

Includes :

  • 2× DI02
  • no Bag, no V-Lock
